HYUNDAI 50B-9 FORKLIFT

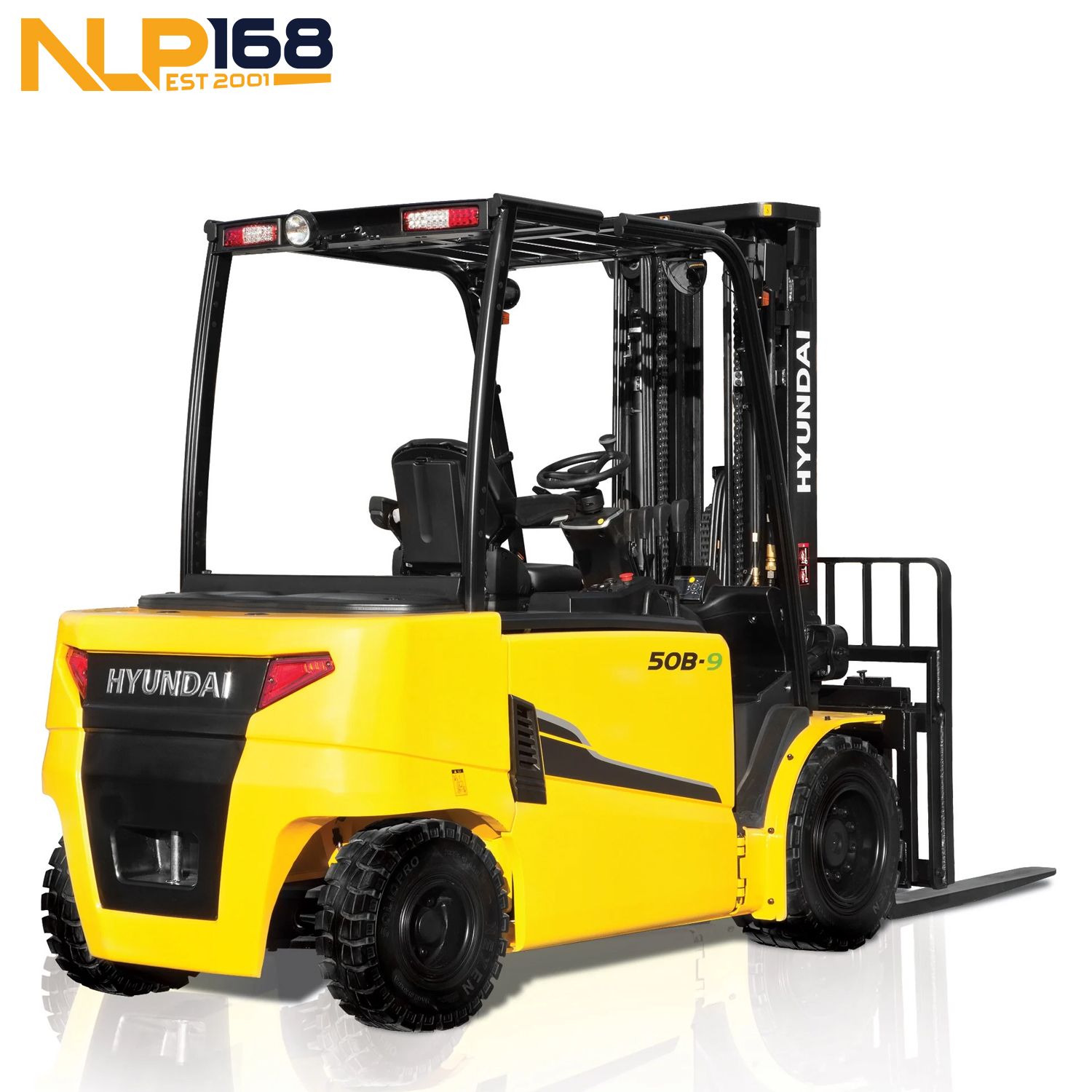

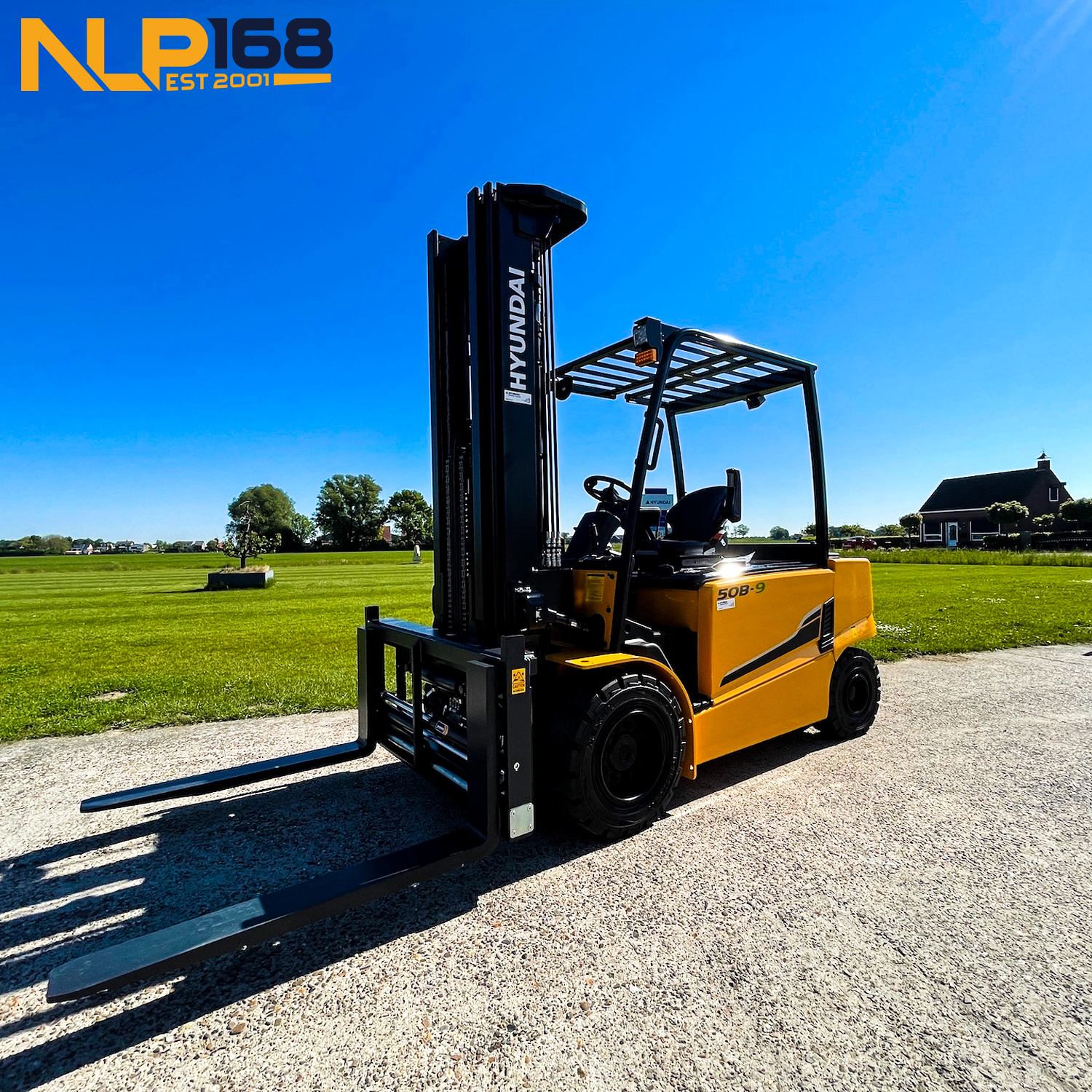

Hyundai 50B-9 Electric Forklift

Hyundai 50B-9 is a counterbalance forklift model that operates entirely on electric power, manufactured by Hyundai Material Handling. It is designed with advanced AC motor technology, offering significant improvements in performance, energy efficiency, durability, and especially operator comfort.

• 50: Indicates a rated lifting capacity of 5 tons (equivalent to 5,000 kg). This is a large and impressive capacity for an electric forklift, suitable for warehouses and factories handling very heavy goods.
• B: Stands for Battery Type, confirming this is an electric forklift.
• 9: Represents Series 9, Hyundai’s most modern product line, integrating advanced technologies such as AC motors, intelligent control systems, and superior ergonomic design.

The 50B-9 forklift is an ideal choice for work environments that require clean air and low noise, such as food and pharmaceutical warehouses, electronics manufacturing plants, and large-scale distribution and production centers where high lifting capacity is needed without compromising air quality or causing noise pollution.

Key Information about Hyundai 50B-9 forklift

The Hyundai 50B-9 is a powerful, environmentally friendly, and highly efficient material handling solution for indoor applications, especially when handling heavy loads and requiring high stability.

Key highlights of this model include:

• Zero Emissions & Eco-Friendly: Operates with zero toxic emissions, ideal for indoor environments and industries sensitive to pollution or requiring high hygiene standards.
• Quiet Operation & Low Vibration: Extremely low noise and vibration levels create a pleasant working environment for both operators and those nearby, reducing stress and fatigue during long shifts.
• High Energy Efficiency: Utilizes AC motors and intelligent control systems to optimize battery usage, extend operating time, and reduce electricity costs.
• Low Operating Costs: Compared to diesel or gas forklifts of the same capacity, energy (electricity) costs are significantly lower, and maintenance costs are reduced due to fewer moving mechanical parts.
• Precise and Smooth Control: Advanced control systems allow for very smooth and precise lifting, moving, and stopping, increasing productivity and minimizing the risk of product damage.
• Superior Stability (4 wheels): The 4-wheel configuration provides excellent stability when lifting heavy (5 tons) or high loads, as well as when moving on uneven surfaces, enhancing safety.
• Outstanding Safety and Comfort: Series 9 design maximizes operator safety and comfort, with advanced ergonomic and protective features.

Technical Specifications

Outstanding Features of Hyundai 50B-9 forklift

Powerful and Advanced AC Motor System:

• Both the drive and hydraulic pump motors are brushless AC types.
• This provides higher energy efficiency, longer lifespan, no need for brush maintenance (as with DC motors), and extremely precise and smooth speed/torque control.
• This system increases productivity and safety when handling heavy loads.

Regenerative Braking System:

• An intelligent feature that saves energy.
• When the operator releases the accelerator or brakes, the motor converts kinetic energy (from vehicle movement) into electricity to recharge the battery.
• This significantly extends operating time between charges and reduces mechanical brake wear.

Intelligent Control System:

• Equipped with advanced digital controllers (typically from leading suppliers like Curtis or ZAPI).
• Ensures smooth, precise, and efficient starting, acceleration, deceleration, and lifting operations.
• Allows customization of operating parameters to suit different work environments or operators.

Superior Series 9 Ergonomic Design:

• Spacious, ergonomically designed cabin for optimal operator comfort.
• Shock-absorbing seat with flexible adjustments (slide, recline, weight adjustment).
• Scientifically arranged control panel, easy to operate, multi-function LCD display for clear information, reducing operator fatigue during long shifts.

Optimal Visibility:

• The mast is designed with narrow crossbars and optimally positioned lift cylinders, providing a wide front view for the operator.
• Enhances safety, especially in crowded or tight areas.

Superior Stability (4-wheel configuration):

• 4-wheel configuration provides excellent stability when lifting heavy (5 tons) or high loads, as well as when moving on uneven surfaces, enhancing safety.

Self-Diagnostic Feature:

• The electronic system can self-diagnose minor faults and display error codes on the LCD screen.
• This helps quickly identify and resolve issues, reducing downtime and maintenance costs.

Safety and Convenience

Safety:

• Operator Presence Sensing System (OPS): Standard safety feature that automatically disables lifting/lowering and travel functions if the operator is not seated properly or leaves the seat, preventing unintended operation.
• Wet Disc Brake: Sealed, highly efficient, durable, and low-maintenance braking system. Ensures safe stopping even under load and in harsh conditions.
• Automatic Parking Brake: Engages automatically when the vehicle stops completely or the operator leaves the seat, enhancing safety when parking, especially on slopes.
• Anti-Roll Back Function: Prevents the forklift from rolling backward when starting on a slope, making control safer and easier.
• LED Lighting and Warning System: Headlights, taillights, LED signal lights, and reverse buzzer enhance visibility and warning for those nearby, especially in low-light environments.
• Overhead Guard: Robust design to international standards, protecting the operator from falling objects.
• Emergency Stop Button: Easily accessible, allowing the operator to immediately cut all power in an emergency.

Convenience:

• Multi-function, Intuitive LCD Display: Provides detailed and clear information on key parameters such as battery level, operating hours, error codes, travel and lift speeds, helping the operator easily monitor vehicle status and performance.
• Premium Comfort Seat: Suspension seat with multiple adjustments (slide, recline, weight adjustment) for maximum comfort and reduced fatigue during long shifts.
• Adjustable Steering Wheel and Control Levers: Allows the operator to find the most comfortable and optimal driving position, improving operational efficiency.
• Electric Power Steering (EPS): Makes steering light, precise, and reduces operator effort.
• Speed Limiting Function: Allows setting and limiting the maximum speed in sensitive or safety-critical areas.
• Easy Battery Replacement (Side Battery Extraction – optional): For multi-shift or 24/7 operations, this option allows quick and safe battery replacement in just a few minutes, significantly reducing vehicle downtime.

Advantages and Disadvantages of Hyundai 50B-9 forklift

Advantages:

• Zero Emissions and Eco-Friendly: The biggest advantage, completely clean, no toxic emissions, ideal for food, pharmaceutical, textile warehouses, and environments requiring high hygiene.
• Quiet Operation and Low Vibration: Creates a comfortable working environment, reduces operator stress, and does not disturb the surrounding environment, especially important in areas where people work near the forklift.
• Low Operating Costs: Electricity costs are much lower than fossil fuels, and maintenance costs are also significantly reduced due to fewer moving and wearing parts (no complex internal combustion engine).
• Precise Control: Advanced electronic systems and AC motors allow for very smooth and precise speed and lifting operations, minimizing the risk of product damage.
• High Stability (4-wheel configuration): Ensures superior safety when lifting heavy (5 tons) or high loads, as well as when moving on uneven surfaces.
• Relatively Small Turning Radius: Still very flexible and maneuverable in tight spaces compared to diesel forklifts of the same capacity, optimizing warehouse space usage.
• Regenerative Braking: Helps save energy and extend brake life.
• Less Overall Maintenance Required: Compared to diesel/gas forklifts, maintenance is simpler and less costly.

Disadvantages:

• High Initial Investment: Electric forklifts (especially with Lithium-ion technology) usually have a higher upfront cost than diesel/gas forklifts of the same capacity.
• Limited Operating Time: Dependent on battery capacity and charging time (typically 6-12 hours for lead-acid batteries). Additional investment in spare batteries or fast-charging systems is needed for 24/7 operations, increasing costs and management requirements.
• Performance May Drop When Battery is Low: Lifting and travel speeds may decrease when battery levels are low, affecting productivity at the end of a shift.
• Affected by Temperature: Battery performance decreases at very low (e.g., deep cold storage without special options) or very high temperatures, requiring battery temperature management systems.
• Charging Infrastructure Required: Needs dedicated space for charging stations and suitable, safe electrical systems.
• Less Suitable for Outdoor/Rough Terrain: Lower ground clearance and standard solid tires are not optimal for rough, uneven, or wet/dirty environments.

Applications of Hyundai 50B-9 forklift

The Hyundai 50B-9 is an ideal choice for the following applications:

• Large indoor warehouses and distribution centers: Lifting and moving heavy pallets in aisles, storage, and transfer areas, especially when high stability is required with a 5-ton load.
• Food and beverage industry: Requires clean air, no pollution, and low noise to ensure food safety and hygiene.
• Pharmaceutical and medical industry: Ensures a clean, noise-free, and pollution-free environment, complying with strict regulations.
• Electronics and high-tech manufacturing: Avoids dust and emissions that could harm sensitive products.
• Indoor areas with strict emission and noise requirements: Where a clean and efficient 5-ton material handling solution is needed.

Maintenance Schedule:

Regular maintenance is crucial to ensure performance, safety, and extend the lifespan of the 50B-9 electric forklift.

Although less complex than diesel forklifts, strict adherence to procedures is still required:

Daily/Before Each Shift:

• Check battery water level (for lead-acid batteries) and top up if needed (use only distilled water, after the battery is fully charged and cooled).
• Check tire condition (wear, damage) and pressure (for pneumatic tires).
• Check lights, horn, brakes, mirrors.
• Check forks and lift chains for damage or abnormal wear.
• Check electrical connections and cables for damage, looseness, or leaks.
• Clean dust from the vehicle, especially motor and controller cooling vents.

Every 250 operating hours (or 3 months):

• Check hydraulic oil level and top up if needed.
• Check steering system and joints, lubricate if needed.
• Check the entire brake system (wet disc brakes, brake fluid).
• Check motors and controllers (cooling fans, cables, electrical connections).
• Check overall battery condition and terminals.

Every 5,000 operating hours (or 6 months):

• Check and lubricate other moving points as per manufacturer’s instructions.
• Check and clean battery terminals and cables (ensure no corrosion).
• Check the entire electrical system and sensors.
• Check wheel bearings and joints.

Every 1,000 operating hours (or 12 months):

• Replace hydraulic oil and filter.
• Check gearbox (if any) and gearbox oil.
• Thoroughly inspect chassis and mast for cracks, deformation, or abnormal wear.
• Perform periodic equalizing charge (for lead-acid batteries) to extend battery life.

Specialized Battery Maintenance:

• Lead-acid batteries: Follow charging procedures, top up distilled water promptly, avoid overcharging/discharging, keep battery surface clean.
• Lithium-ion batteries: Require less maintenance but must strictly follow manufacturer’s charging instructions and monitor the Battery Management System (BMS).

Professional Service: Major maintenance and troubleshooting, especially electrical and battery issues, should be performed by trained technicians from Nhat Lo Phat 168.

Comparison with Diesel and Gas Forklifts (5 tons)
