HYUNDAI 35B-9U FORKLIFT

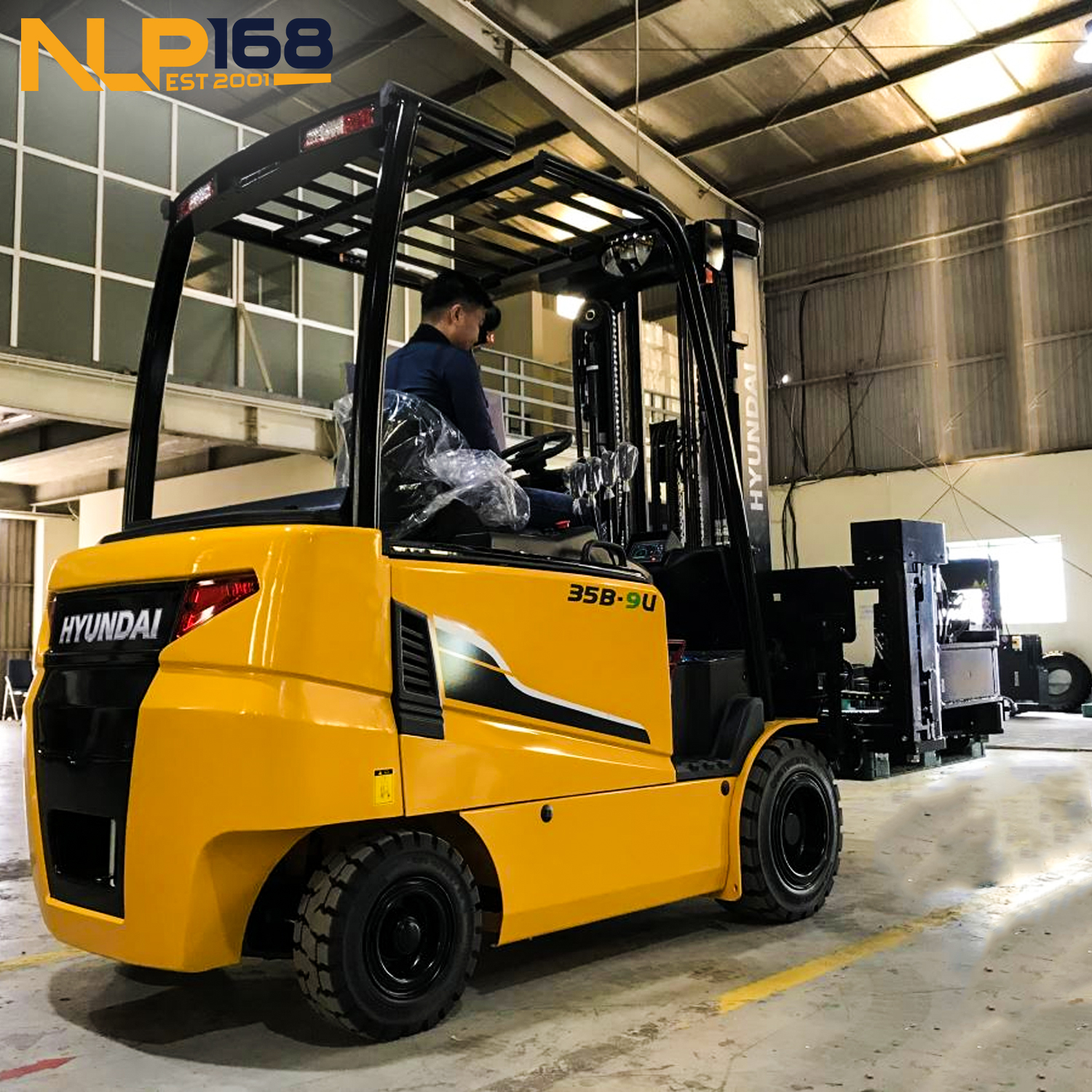

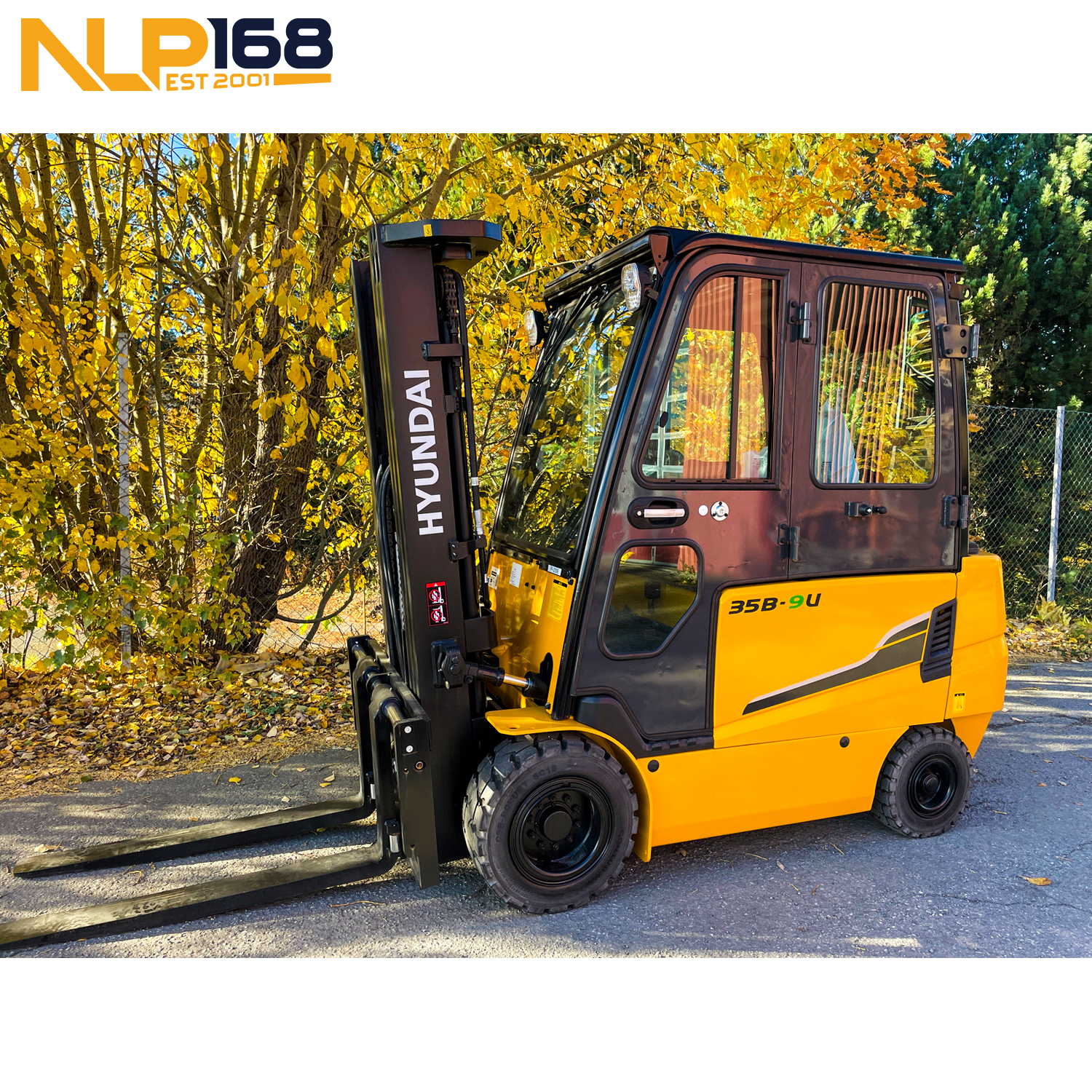

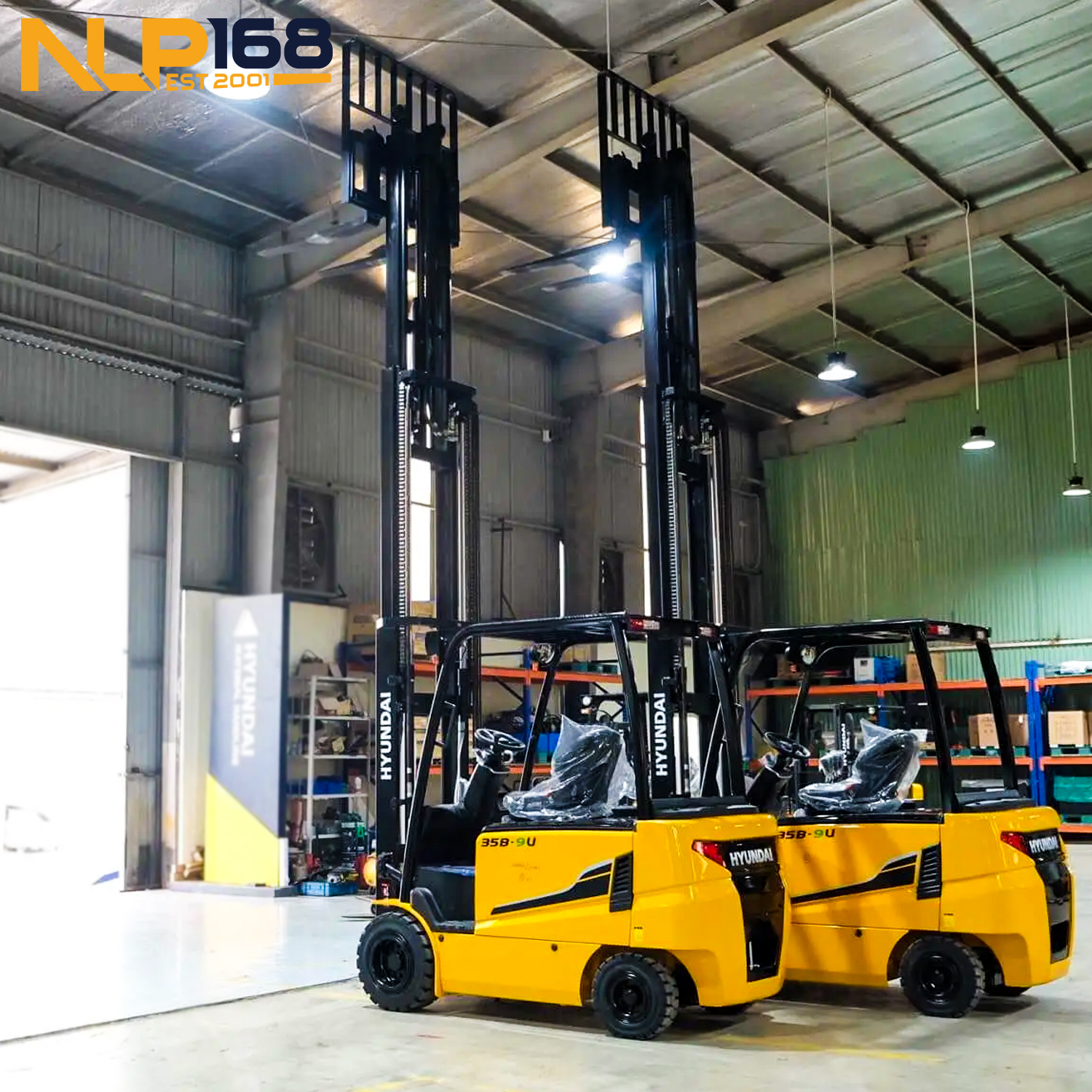

Hyundai 35B-9U Electric Forklift

The Hyundai 35B-9U is a fully electric counterbalance forklift manufactured by Hyundai Material Handling, designed with cutting-edge AC motor technology, delivering significant improvements in performance, energy efficiency, durability, and optimized operator comfort.

• 35: Indicates the rated lifting capacity of 3.5 tons (3,500 kg). This is a very common and versatile capacity for various warehouses and plants.
• B: Stands for Battery Type, confirming it is a battery-powered electric forklift.
• 9: Represents Series 9, Hyundai’s most modern product line, integrating advanced technologies like AC motors, smart control systems, and superior ergonomic design.
• U: Denotes a standard 4-wheel configuration optimized for size and turning radius to enhance maneuverability in various spaces, especially indoors.

The 35B-9U forklift is ideal for work environments requiring clean air and low noise, such as food warehouses, pharmaceutical facilities, electronics component manufacturing plants, supermarkets, distribution centers, etc.

Key Information about Hyundai 35B-9U forklift

The Hyundai 35B-9U is a modern, eco-friendly, and highly efficient material handling solution designed specifically for indoor applications.

Key highlights of this model include:

• Absolute Environmental Friendliness: Operates with zero harmful emissions, ideal for indoor environments and pollution-sensitive or hygiene-critical industries.
• Ultra-Quiet & Low-Vibration Operation: Extremely low noise and vibration, creating a comfortable work environment for both operators and surrounding personnel, reducing stress and fatigue during long shifts.
• High Energy Efficiency: Utilizes AC motors and a smart control system to optimize battery energy usage, extending operating time and reducing electricity costs.
• Low Operating Costs: Significantly lower energy costs (electricity vs. oil/gas) and reduced maintenance costs due to fewer moving mechanical parts (no spark plugs, oil filters, engine oil, etc.).
• Precise & Smooth Control: Advanced control systems enable very smooth, accurate lifting, moving, and stopping, increasing productivity and minimizing the risk of product damage.
• Superior Safety & Comfort: Series 9 design prioritizes maximum operator safety and comfort with advanced ergonomic and protective features.

Specifications:

Key Features of Hyundai 35B-9U forklift

• Advanced AC Motor System:
  • Both the travel motor and hydraulic pump are brushless AC motors.
  • This delivers higher energy efficiency, longer lifespan, eliminates brush maintenance (unlike DC motors), and provides extremely precise and smooth speed/torque control.
  • This system enhances productivity and operational safety.
• Regenerative Braking System:
  • A smart energy-saving feature.
  • When the operator releases the accelerator or applies the brake, the motor converts kinetic energy (from the truck’s movement) into electrical energy to recharge the battery.
  • This significantly extends operating time between charges and reduces mechanical brake wear.
• Smart Control System:
  • Equipped with advanced digital controllers (typically from leading suppliers like Curtis or ZAPI).
  • This controller ensures smooth, precise, and efficient acceleration, deceleration, lifting, and lowering.
  • It also allows customization of operating parameters to suit different work environments or operators.
• Superior Series 9 Ergonomic Design:
  • Spacious operator compartment designed ergonomically for maximum comfort.
  • Shock-absorbing seat with flexible adjustments (slide, recline, weight-sensitive).
  • Scientifically arranged control panel, easy to operate, with a clear multifunction LCD display minimizing operator fatigue during long shifts.
• Optimized Visibility:
  • The mast is designed with narrow masts and optimally placed lift cylinders, providing the operator with a wide forward view.
  • This enhances safety, especially when working in crowded or confined areas.
• Maneuverability:
  • Thanks to a small turning radius and compact overall dimensions, the truck easily moves, turns, and works efficiently in narrow aisles and confined corners of warehouses and plants.
  • The 4-wheel configuration provides excellent stability, especially when handling high loads.
• Self-Diagnostics Feature:
  • The integrated electronic system can automatically detect minor faults and display error codes on the LCD screen.
  • This enables quick identification and troubleshooting, reducing downtime and maintenance costs.

Safety & Convenience

Safety:

• Operator Presence Sensing System (OPS):
  • A standard safety feature that automatically disables lift/lower and travel functions if the operator is not seated correctly or leaves the seat.
  • This prevents unintended accidents caused by accidental operation.
• Wet Disc Brakes:
  • A sealed, high-efficiency, durable, and low-maintenance braking system.
  • Ensures safe stopping, even when loaded and under harsh working conditions.
• Parking Brake Auto-Apply: Automatically engages when the truck comes to a complete stop or the operator leaves the seat, enhancing parking safety, especially on slopes.
• Anti-Roll Back Function: Prevents the truck from rolling backward when starting on an incline, enabling safer and easier control.
• LED Lighting & Warning System: Headlights, taillights, LED signal lights, and backup horn enhance visibility and provide warnings to others, especially in low-light environments.
• Overhead Guard: Sturdy design meeting international standards, protects the operator from falling objects.
• Emergency Stop Button: Positioned for easy access, allowing the operator to instantly cut off all power in an emergency.

Convenience:

• Intuitive Multifunction LCD Display:
  • Provides clear, detailed information on key parameters like battery level, operating hours, error codes, travel speed, and lifting speed.
  • Helps the operator easily monitor the truck’s condition and performance.
• Premium Comfort Seat: Suspended, shock-absorbing seat with multiple adjustments (slide, recline, weight-sensitive), providing maximum comfort and reducing operator fatigue during long shifts.
• Adjustable Steering Wheel & Control Levers: Allow the operator to easily find the most comfortable and optimal driving position based on their physique, enhancing operational efficiency.
• Electric Power Steering (EPS): Enables light, precise steering, reducing operator effort, especially in tight spaces requiring frequent maneuvering.
• Speed Limiting Function: Allows setting and limiting the truck’s maximum speed in sensitive or safety-critical areas requiring strict control.
• Easy Battery Change (Side Battery Extraction – Optional): For multi-shift or 24/7 operations, this option allows quick and safe battery/pin replacement in just a few minutes, significantly reducing truck downtime.

Advantages & Disadvantages of Hyundai 35B-9U forklift

Advantages:

• Zero Emissions & Eco-Friendly: The biggest advantage, completely clean with no harmful emissions, ideal for food, pharmaceutical, textile, supermarkets, and high-hygiene environments.
• Quiet Operation & Low Vibration: Creates a comfortable work environment, reduces operator stress, and doesn’t disturb the surroundings, especially important where people work near the truck.
• Low Operating Costs: Electricity costs are much lower than fossil fuels, and maintenance costs are significantly reduced due to fewer moving and wearing parts (no complex internal combustion engine).
• Precise Control: Advanced electronics and AC motors allow very smooth and precise control of speed and lifting operations, minimizing the risk of product damage.
• Small Turning Radius: Highly flexible and maneuverable in tight spaces, narrow aisles, optimizing warehouse space utilization.
• High Stability (4-Wheel Configuration): Ensures safety when handling high loads or moving on uneven surfaces.
• Regenerative Braking: Saves energy and extends brake life.
• Less Overall Maintenance Required: Simpler and less costly maintenance procedures compared to diesel/gas models.

Disadvantages:

• Higher Initial Investment: Electric forklifts (especially with Lithium-ion batteries) typically have a higher purchase price than comparable diesel/gas models.
• Limited Operating Time:
  • Dependent on battery capacity and charging time (usually 6-12 hours for lead-acid batteries).
  • Requires investment in spare batteries or fast chargers for 24/7 operation, increasing costs and requiring management.
• Reduced Performance with Low Battery: Lifting and travel speeds may decrease as the battery level drops, affecting end-of-shift productivity.
• Temperature Sensitivity: Battery performance is reduced in very low temperatures (e.g., deep cold storage without special options) or very high temperatures, requiring battery temperature management systems.
• Requires Charging Infrastructure: Needs dedicated space for charging stations and compatible, safe electrical systems.
• Less Suitable for Outdoors/Rugged Terrain: Lower ground clearance and solid tires (usually standard) are not optimal for rough, uneven, wet, or dirty terrain.

Applications of Hyundai 35B-9U forklift

The Hyundai 35B-9U is the ideal choice for the following applications:

• Indoor Warehouses and Distribution Centers: Lifting and moving pallet goods in aisles, storage, and transfer areas. Suitable for 3.5-ton loads.
• Food & Beverage Industry: Requires clean, non-polluting air and low noise to ensure food safety and hygiene.
• Pharmaceutical & Medical Industries: Ensures a clean, quiet, and non-polluted atmosphere, complying with strict regulations.
• Electronics & High-Tech Component Manufacturing: Prevents dust and harmful emissions from damaging sensitive products.
• Large Supermarkets & Retail Stores: Quiet operation that doesn’t disturb customers and staff, maintaining a pleasant shopping environment.
• Cold Storage (with special configuration): Can be equipped with specialized options and materials for efficient operation in low-temperature environments.
• Any indoor area with strict emission and noise requirements, where a clean and efficient material handling solution is needed.

Regular Maintenance

Regular maintenance is crucial to ensure performance, safety, and extend the life of the 35B-9U electric forklift.

While less complex than diesel trucks, strict procedures must be followed:

• Daily / Before Each Shift:
  • Check battery electrolyte level (for lead-acid) and top up if needed (use only distilled water, after battery is fully charged and cooled).
  • Check tire condition (wear, damage) and pressure (for pneumatic tires).
  • Check lights, horn, brakes, mirrors.
  • Check forks and chains for damage or unusual wear.
  • Check electrical connections and cables for damage, looseness, or leaks.
  • Clean dirt/debris from the truck, especially motor and controller cooling vents.
• Every 250 Hours (or 3 Months):
  • Check hydraulic oil level and top up if needed.
  • Check steering system and joints, lubricate if needed.
  • Inspect entire brake system (wet disc brake, brake fluid).
  • Check motors and controllers (cooling fan, cables, tightness of electrical connections).
  • Check overall condition of battery/pin and terminals.
• Every 500 Hours (or 6 Months):
  • Check and lubricate other moving points per manufacturer’s guidelines.
  • Check and clean battery terminals and cables (ensure no corrosion).
  • Inspect overall electrical system and sensors.
  • Check axle joints and wheel bearings.
• Every 1,000 Hours (or 12 Months):
  • Replace hydraulic oil and filter.
  • Check gearbox (if applicable) and gear oil.
  • Comprehensive inspection of chassis and mast for cracks, deformation, or unusual wear.
  • Perform periodic equalizing charge (for lead-acid batteries) to extend life.
• Battery/Pin-Specific Maintenance:
  • Lead-Acid: Follow charging procedures, top up with distilled water promptly, avoid over-discharge/overcharge, keep battery surface clean.
  • Lithium-ion: Requires less maintenance but must strictly follow manufacturer charging guidelines and monitor the Battery Management System (BMS).
• Professional Service: Have trained technicians (e.g., from Nhat Lo Phat 168) perform major maintenance and troubleshooting, especially for electrical and battery systems.

Comparison with Diesel & Gas Forklifts (3.5 Ton Capacity)

Conclusion:

The Hyundai 35B-9U (Electric) is the optimal choice for businesses prioritizing a clean, quiet work environment and low operating costs, especially for indoor warehouses, plants, and sensitive industries.

The choice of the right forklift depends on the specific operating environment, budget, priorities regarding operating costs/environment, and crucially, the aisle width and workspace dimensions.

In Vietnam, as the exclusive distributor of Hyundai forklifts for over 20 years, Nhat Lo Phat 168 is committed to providing optimal operational solutions to meet all diverse customer needs.

Please contact us and let us know your current forklift requirements!
